Precision Custom Collets for Specialized Machining Requirements

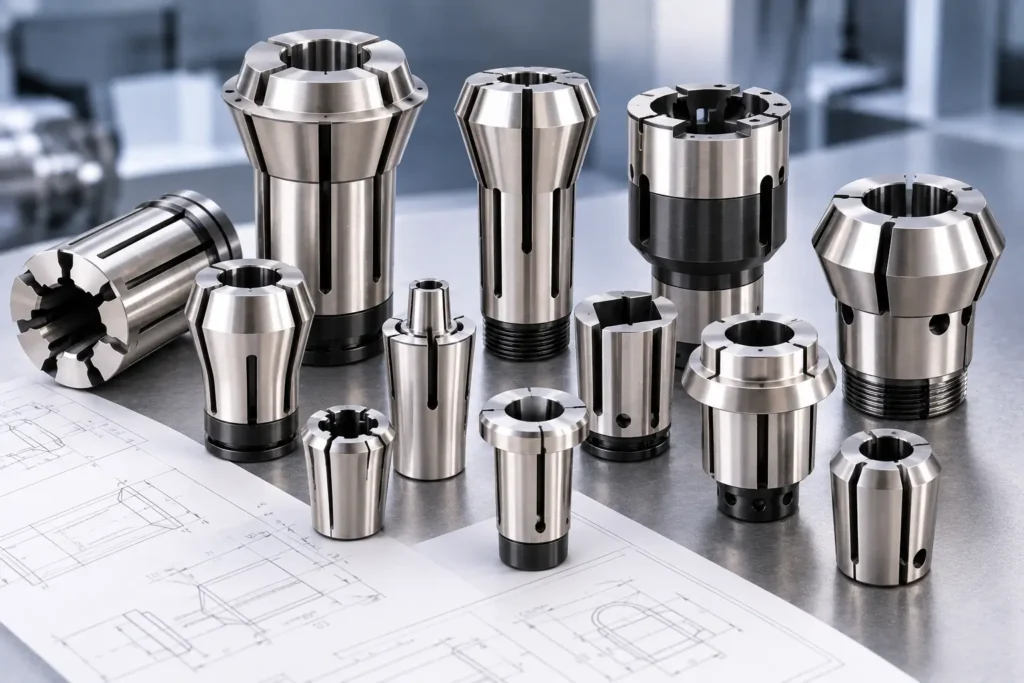

Skillcrafts Industries provides Custom Made Collets for machining and workholding requirements where a standard collet configuration may not match the application.
Custom collet requirements can be developed around the customer’s machine setup, component dimensions, workpiece profile and required gripping arrangement. Custom Make Collets are included as a dedicated category in the Skillcrafts product catalogue.
Custom Collet Solutions
Every machining application can have different workholding requirements. A custom-made collet can be considered when specific dimensions, bore profiles, gripping arrangements or machine interfaces are required.
Skillcrafts Industries can review the requirement based on the information provided by the customer.
When Do You Need a Custom Collet?
A custom collet may be considered when:
- A standard collet does not match the required dimensions
- A special workpiece profile needs to be accommodated
- A specific gripping diameter is required
- The machine has a special collet interface
- A particular bore configuration is required
- A special front or external geometry is needed
- An existing collet needs to be reproduced or modified
Custom Collet Requirements
Machine Details
Provide the machine make, model and spindle details to help determine the required collet configuration.
Component Details
The component drawing or workpiece dimensions help establish the required gripping and bore geometry.
Existing Collet Reference
If available, an existing collet, part number or sample can be provided for reference.
Dimensional Requirements
Important dimensions may include:
- Bore diameter
- Overall length
- External diameter
- Thread
- Mounting dimensions
- Gripping area
- Special profile requirements
Custom Collet Development Process
01. Share Your Requirement
Send your component drawing, machine details, existing collet or sample.
02. Requirement Review
The required dimensions and application details are reviewed to understand the required configuration.
03. Custom Configuration
The collet configuration is determined based on the approved application and dimensional requirements.
04. Manufacturing
The custom collet is produced according to the confirmed specifications.
05. Inspection
The finished component is checked against the applicable dimensional requirements.
Share Your Drawing
We Build Around Your Requirement
For a custom collet enquiry, providing accurate application information helps define the required configuration.
Please Share:
- Machine make and model
- Spindle details
- Component drawing
- Required gripping diameter
- Workpiece material/profile
- Existing collet details
- Required quantity
- Special dimensional requirements
Quality at Every Stage
Requirement → Engineering → Machining → Inspection → Delivery
We follow a quality-focused approach throughout the component development process. Understanding the requirement correctly, maintaining precision during machining and checking the finished component are important parts of delivering reliable solutions.
